AquaVENT® FD140i Mode Setup

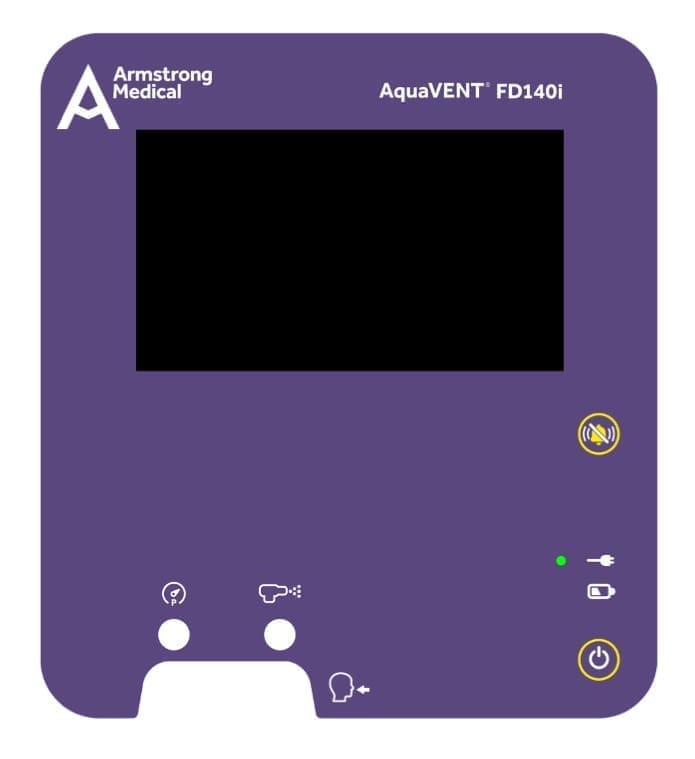

Connect device to mains power and press standby push button on membrane to power on.

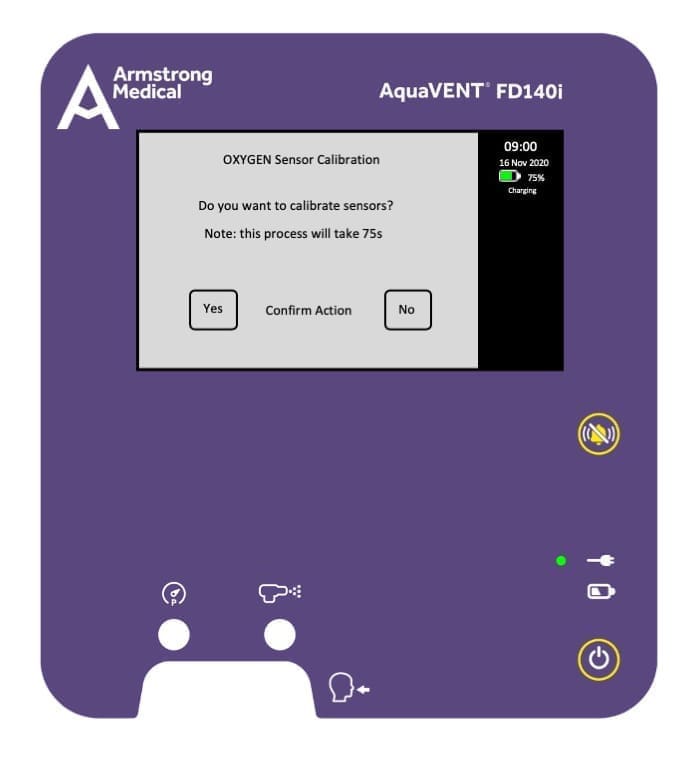

Option to calibrate paramagnetic oxygen sensor on startup.

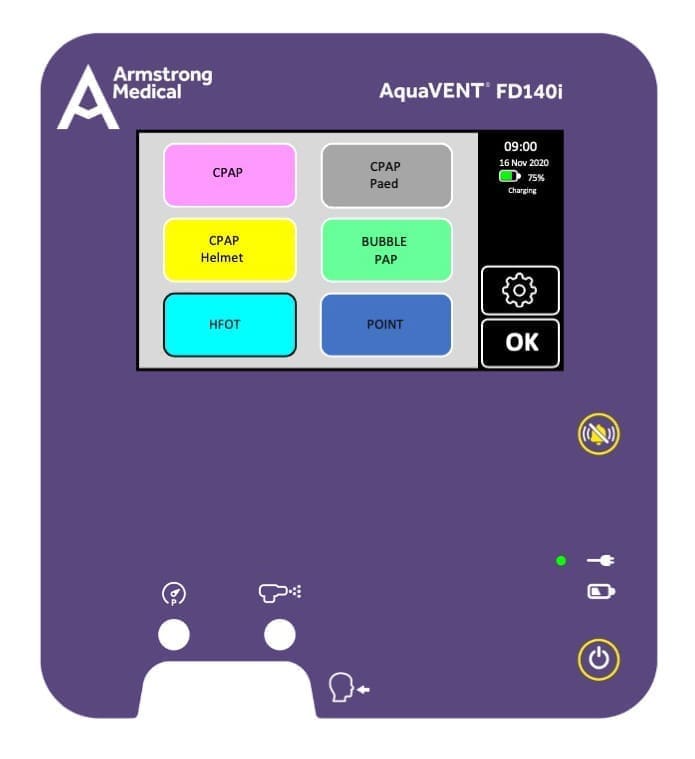

Select required therapy mode. Border around selected mode is black. Press OK to proceed to therapy setup.

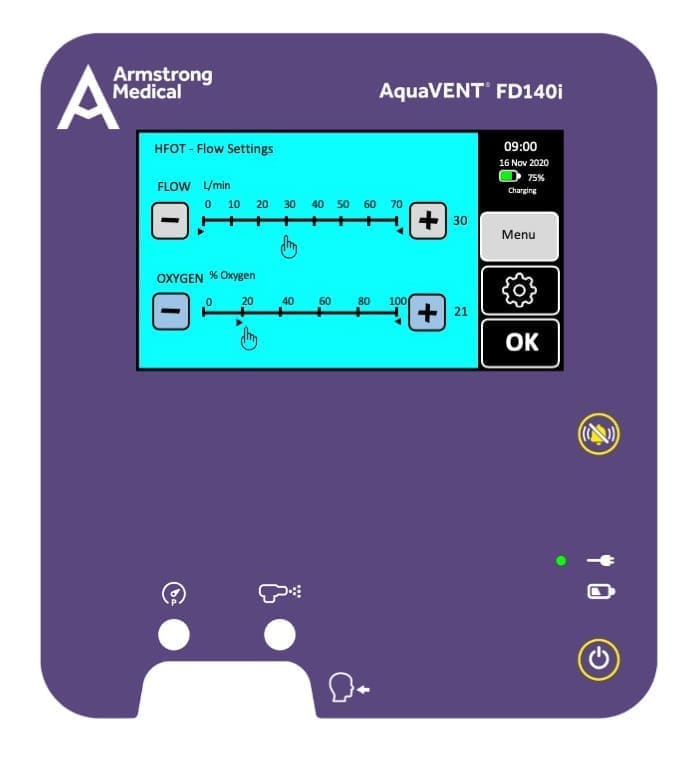

Use pointer icon to adjust flow setting and /or oxygen concentration to approx. level. Use +/- buttons for incremental adjustment. Mode limits defined with limit icons. Press OK to proceed.

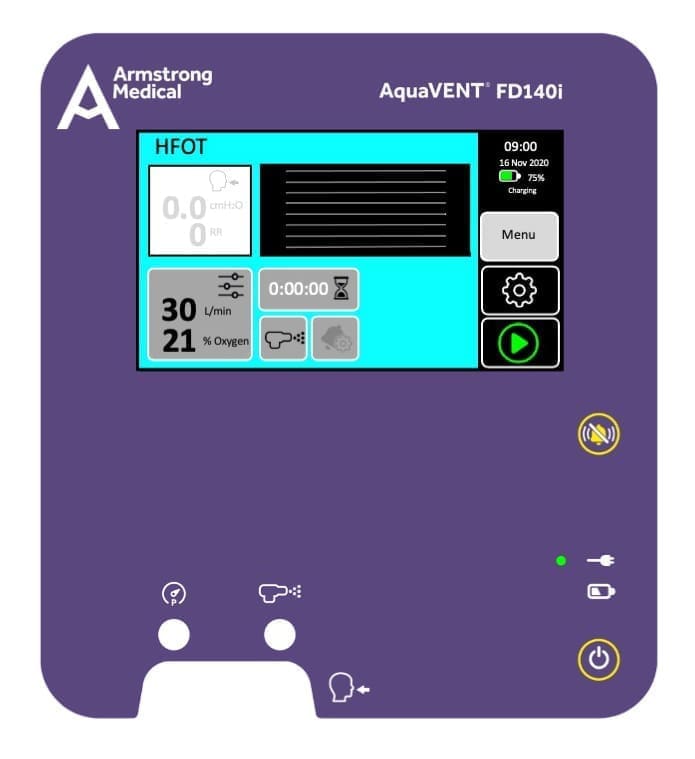

Press the Play button to start therapy. Therapy menu allows: real time monitoring of respiratory activity, access to adjust flow and alarm settings.

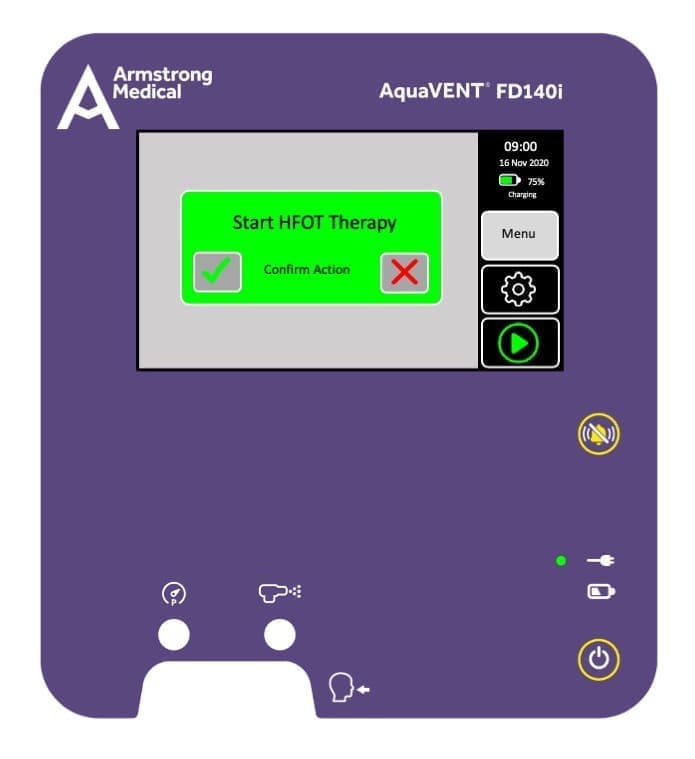

Confirm action by pressing green tick.

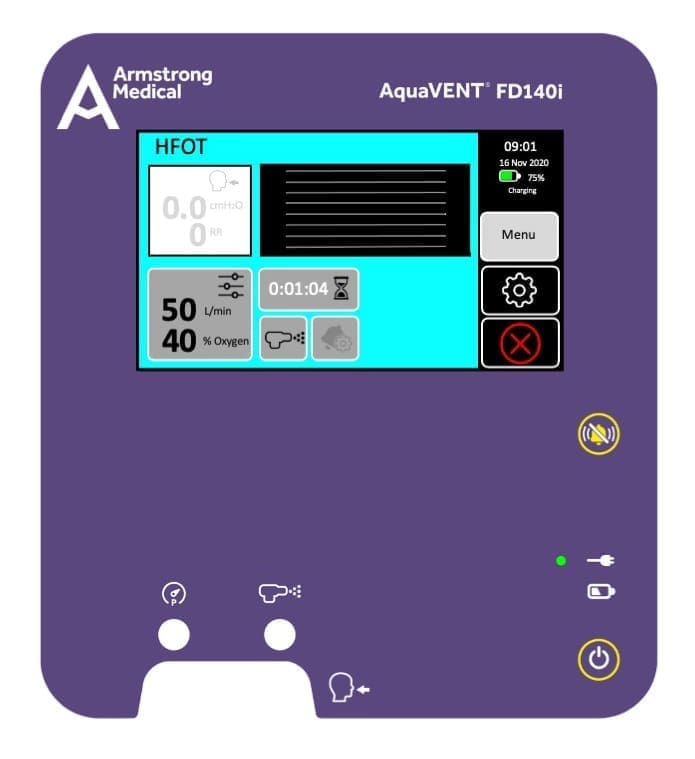

Therapy has begun and the Start Therapy ‘play’ button has now changed to a Stop Therapy ‘X’.
Press flow settings button to access flow settings.

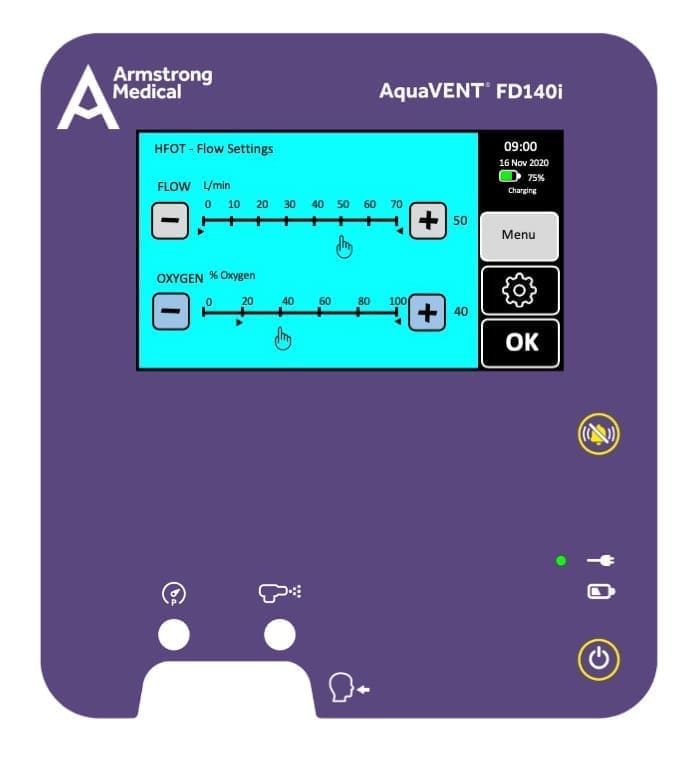

Adjust Flow & Oxygen settings using the +/- buttons or dragging the hand icons. Press OK to return to the therapy screen.
New settings will be presented on the Flow Settings section of the screen.
Press general settings button to access menu.
Adjust as required. Press return icon to revert to Therapy menu.

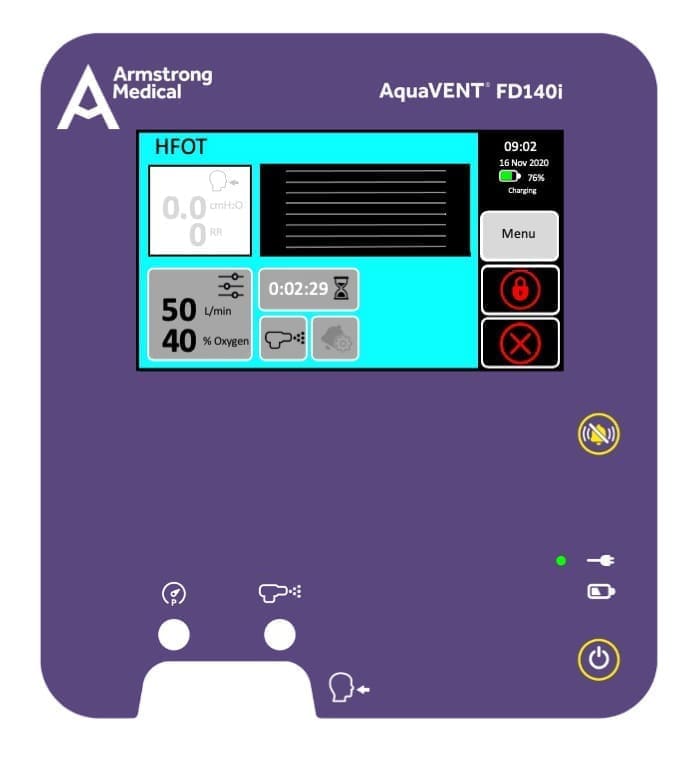

Device locks if screen or membrane buttons are not activated for 1 min. Press screen locked icon to unlock the device.

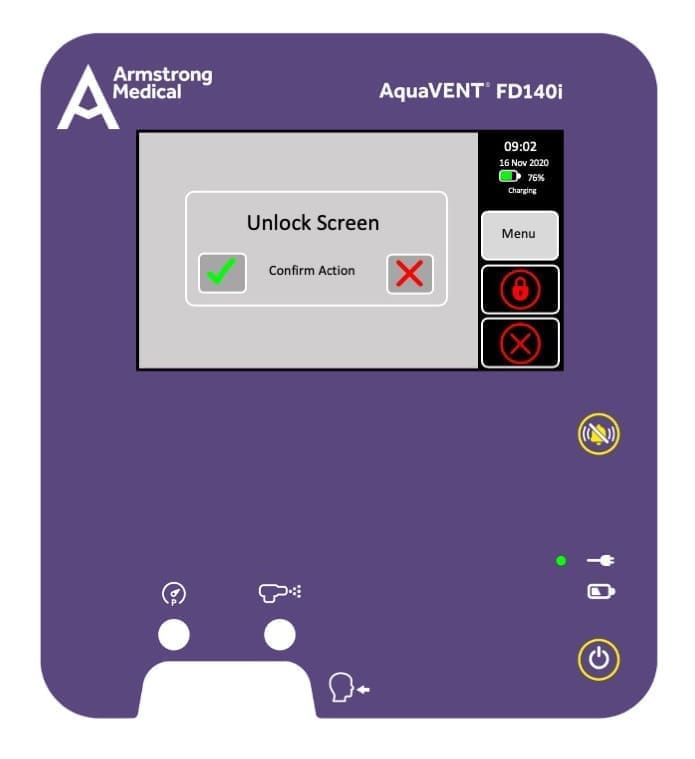

Confirm unlock screen.
