Circuit Assembly
1

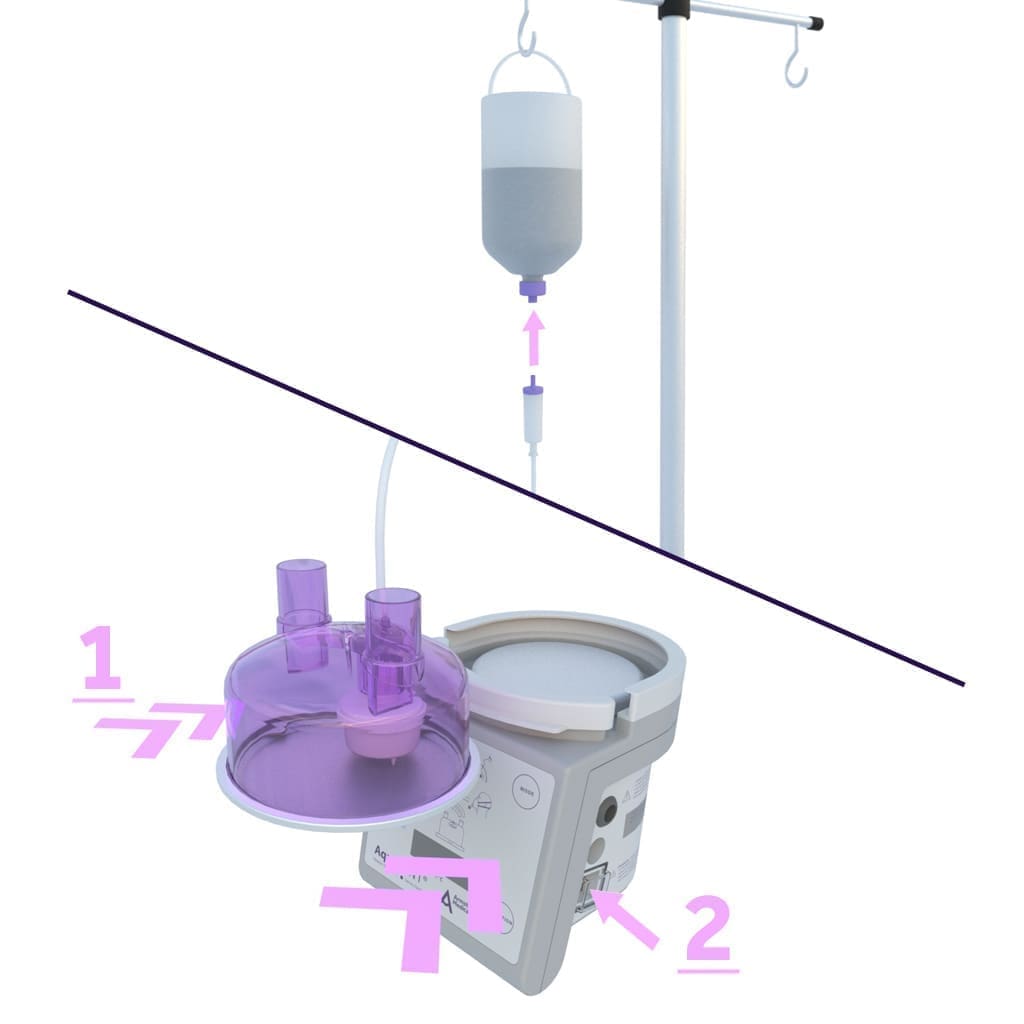

Insert chamber onto heater plate and turn on the AquaVENT® Heater Humidifier. Don’t spike the bag until setup is complete and therapy has started.
2

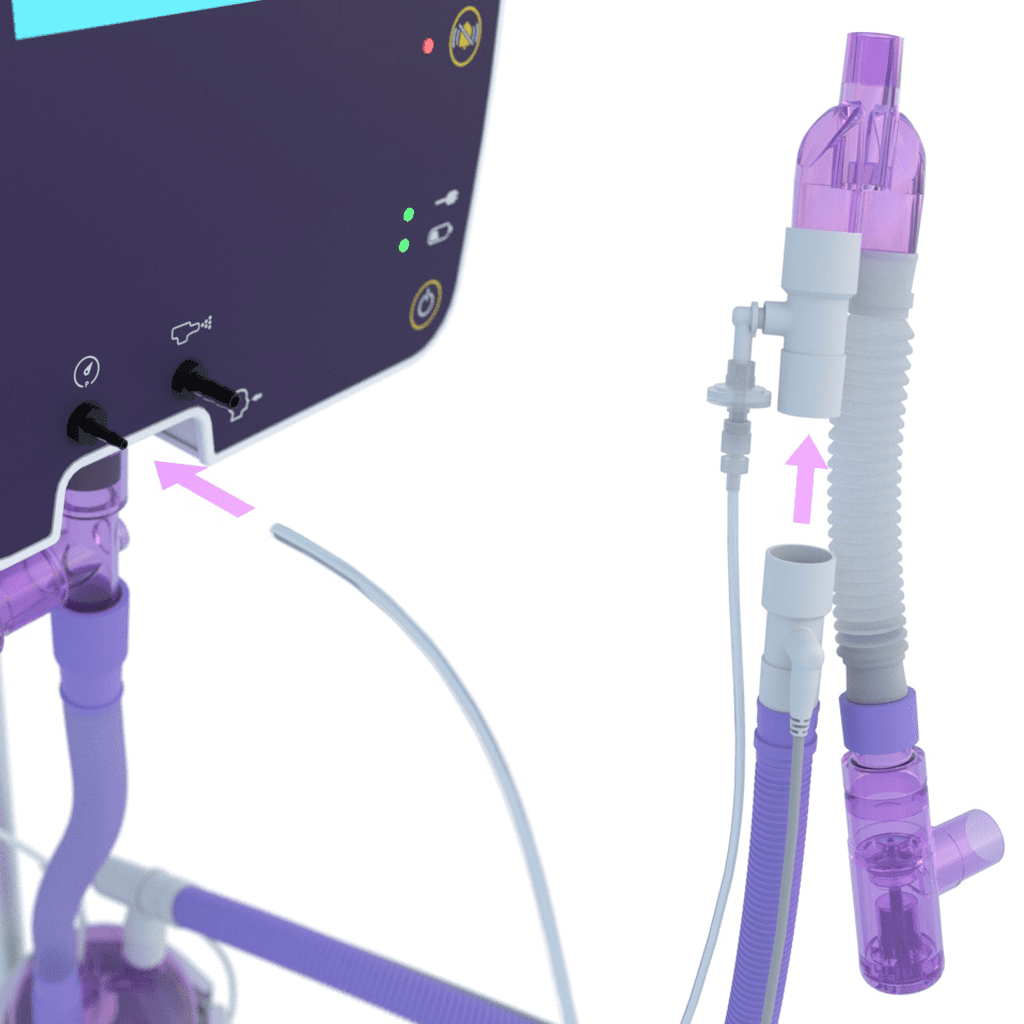

Connect overpressure relief valve and short limb to the AquaVENT® FD140i.
3

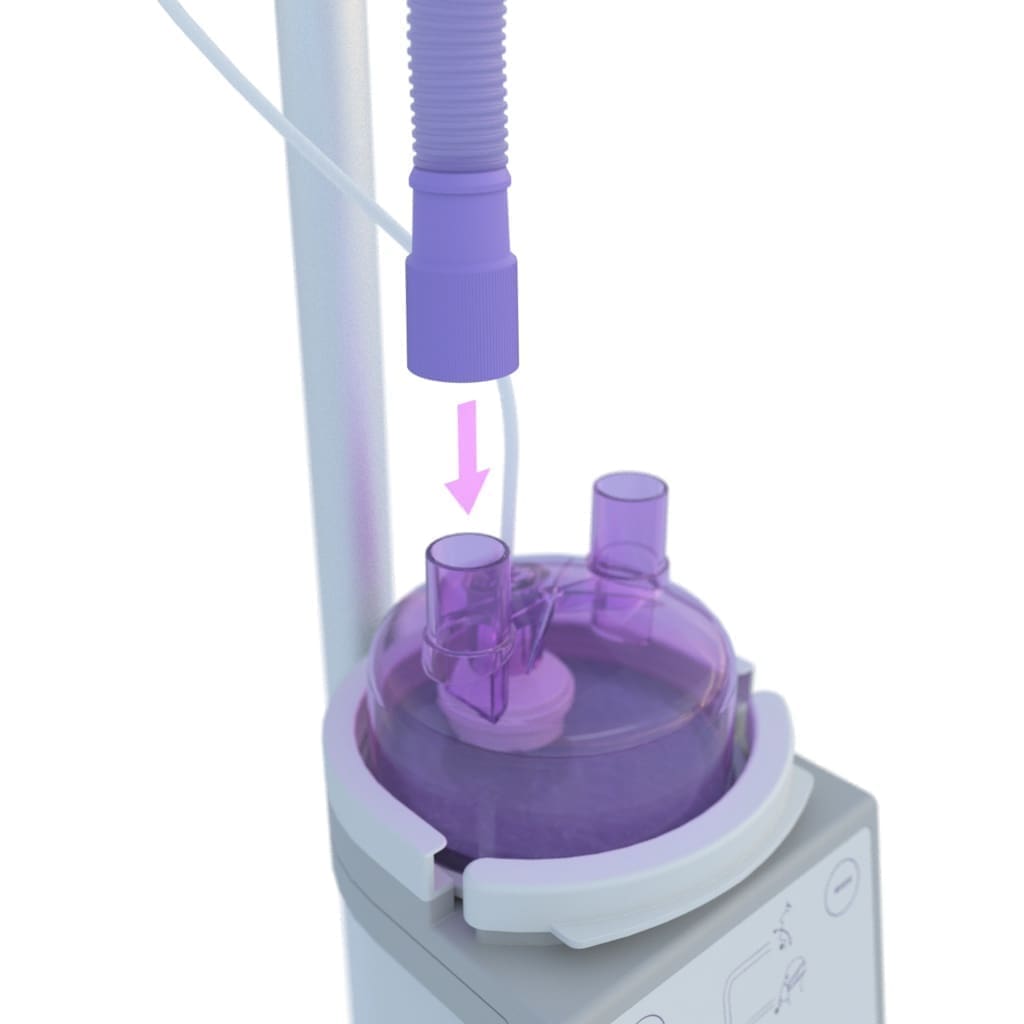

Connect other end of short limb to the left side of chamber.
4

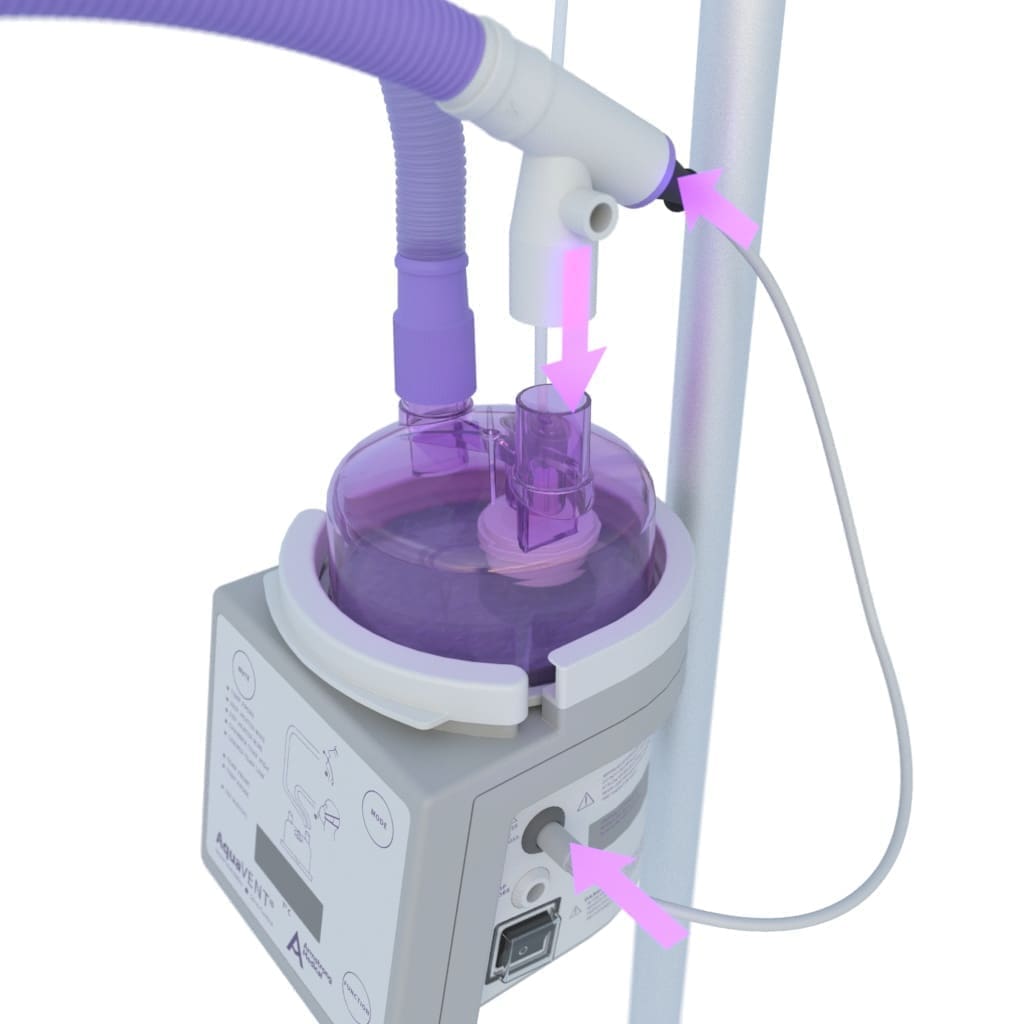

Connect inspiratory limb to the right side of the chamber. Connect heater cable as shown.
5

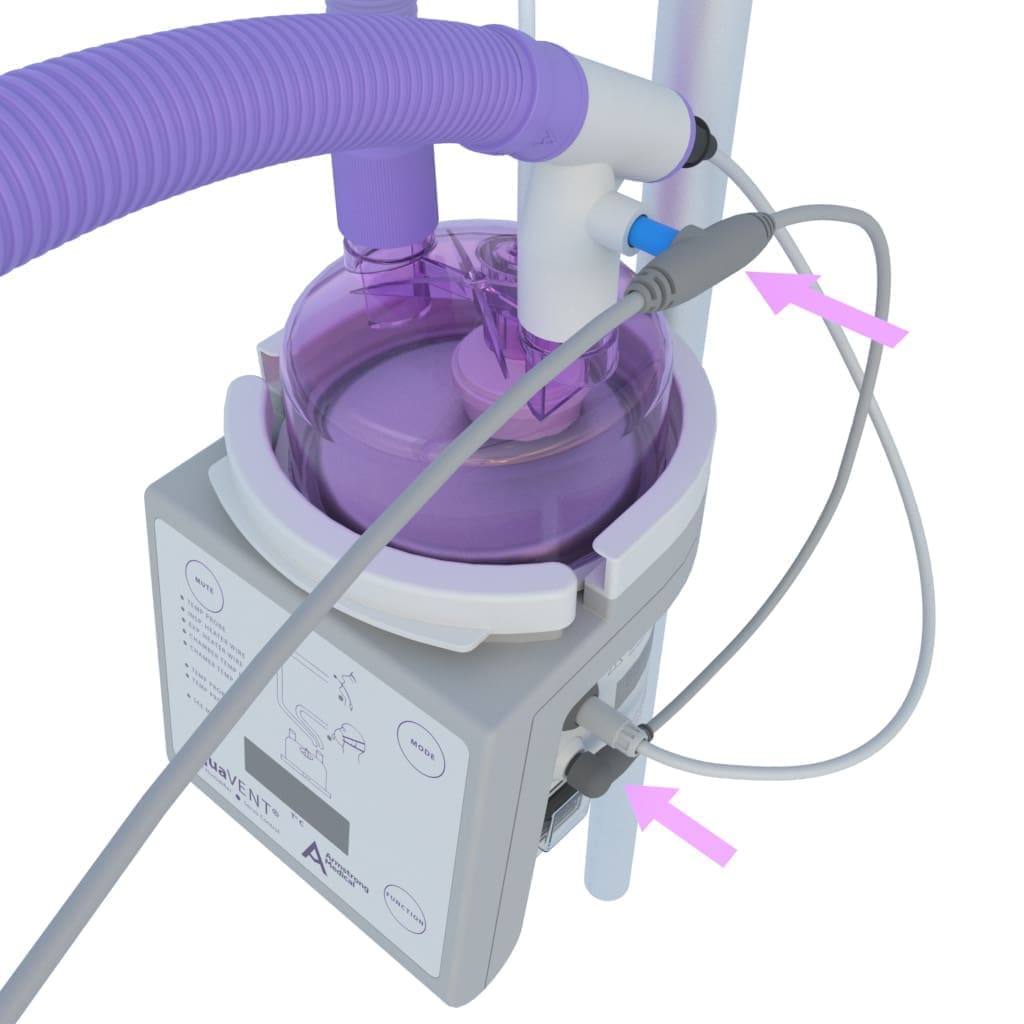

Connect temperature probe cable as shown.
6

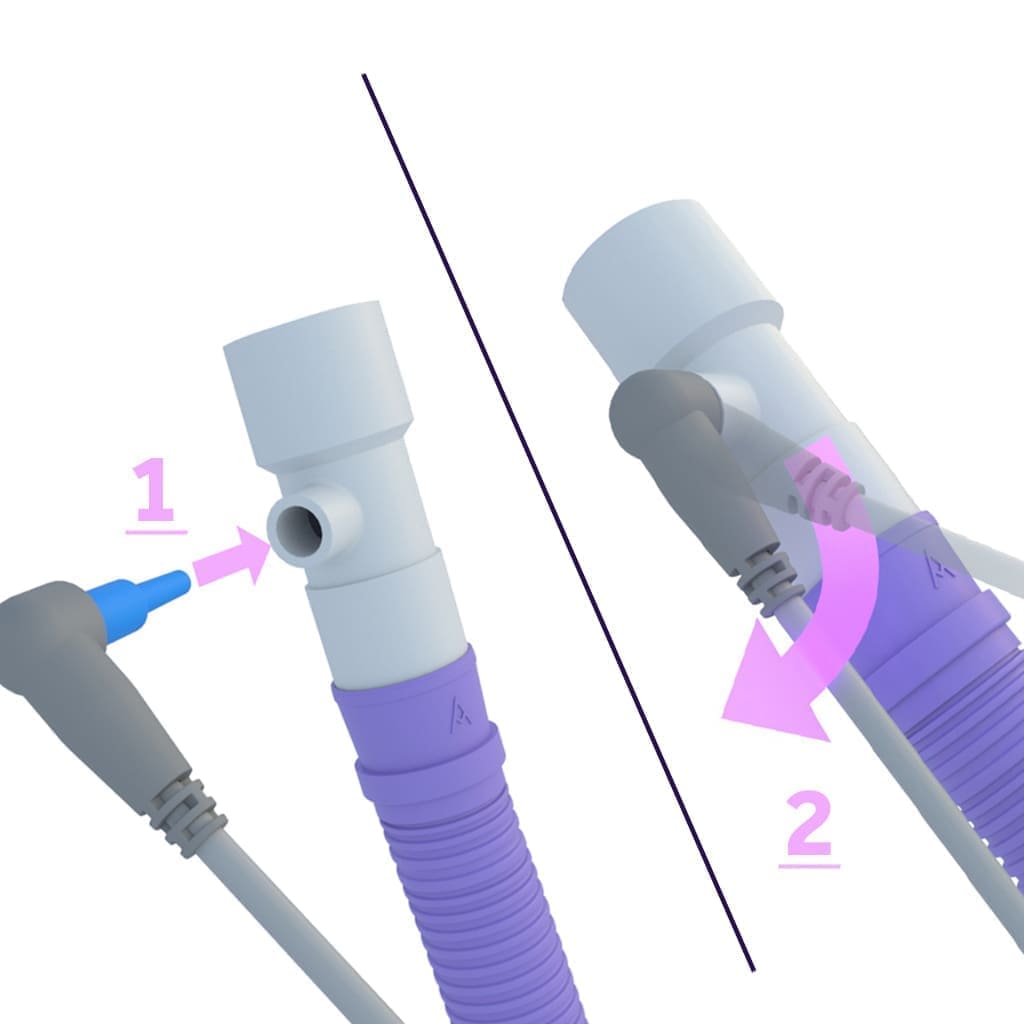

Push temperature probe in and give a quarter twist to secure in place.
7

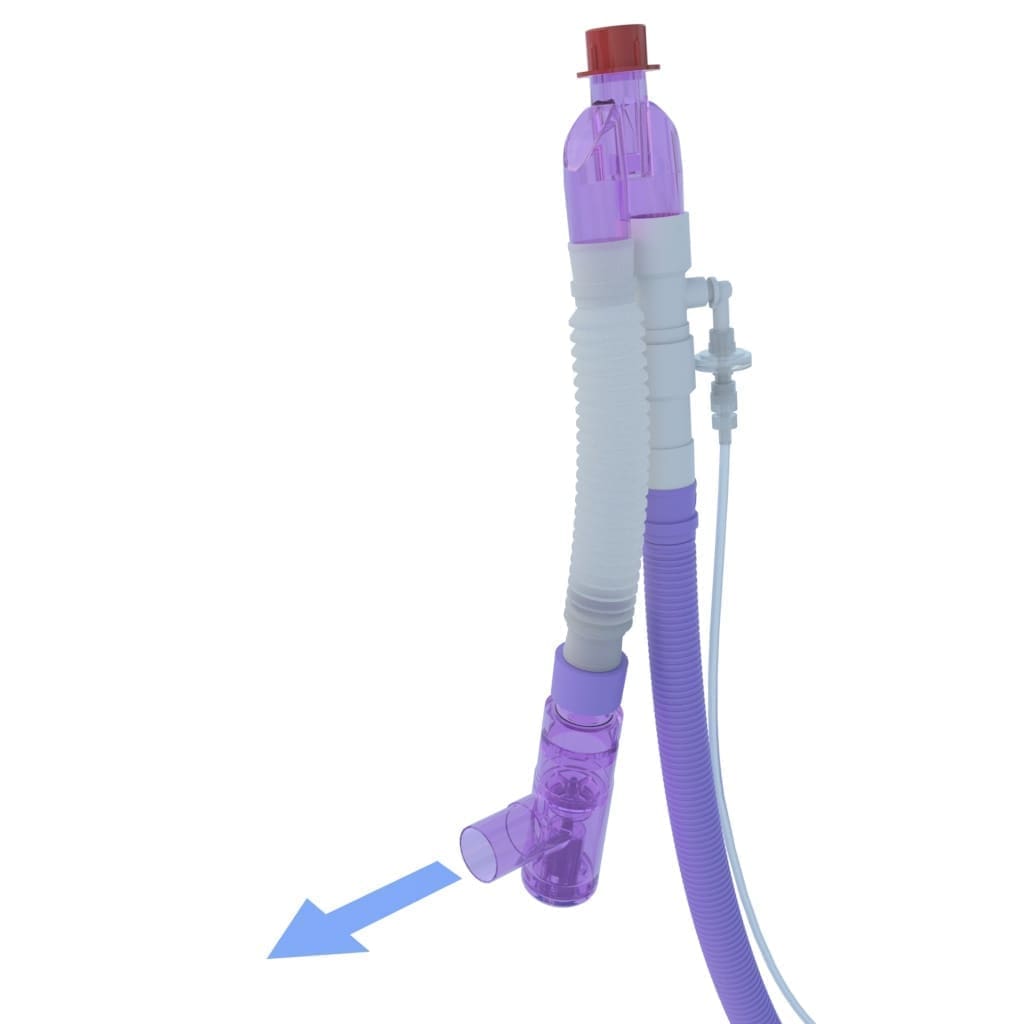

Connect end of the temperature probe to the patient end of the circuit. Again, insert and quarter twist to secure in place.
8
Connect patient end of the circuit to the CPAP add-on kit.
9
PRESSURE SAFETY TEST – Start CPAP therapy & occlude patient end by a gloved hand or with the red cap. Verify gas flow through patient PEEP valve.
10
PRESSURE SAFETY TEST – Occlude patient PEEP valve with a gloved hand.
11
PRESSURE SAFETY TEST – Verify gas flow through overpressure relief valve.
12

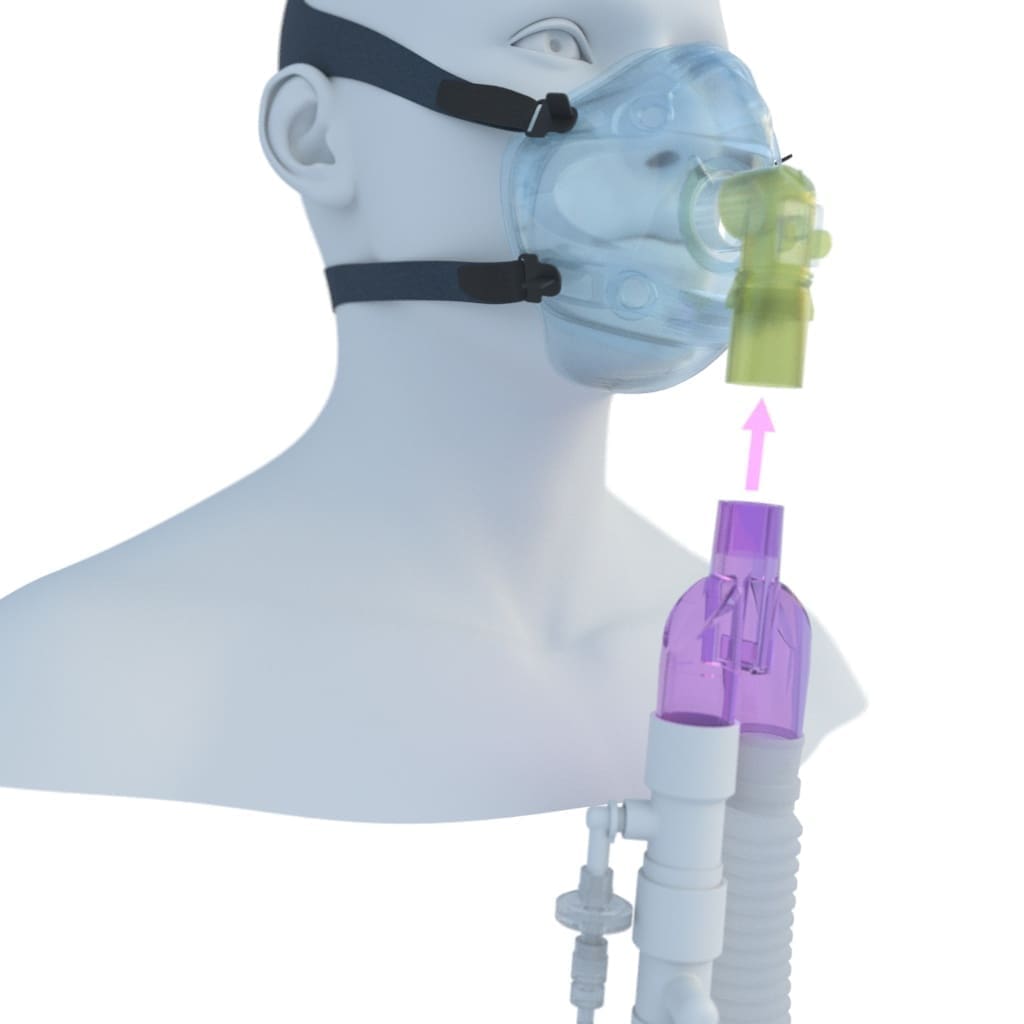

Once gas flow has been verified, remove the red cap and connect breathing circuit to mask.
